Making a Disc Skimmer

Post by pingu » Mon 03 Nov, 2014 19:08

Have you ever thought "Those discs look rusty, I wish I had something to clean them up with".

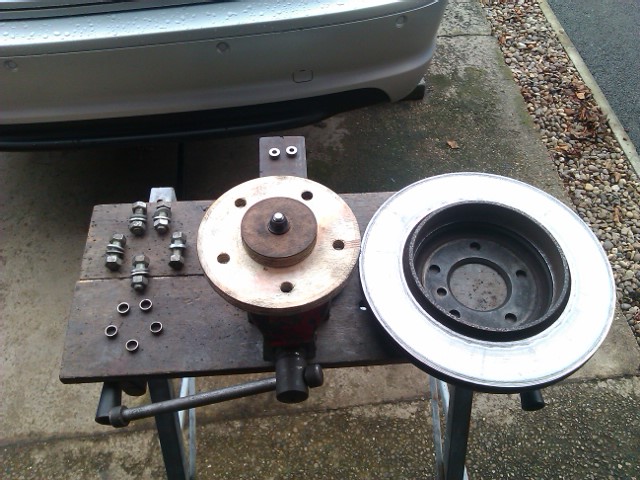

Well, here it is the Pingu Disc Skimming Attachment for a pedestal drill / milling machine...


How to make and use it...



and the maths behind finding the Pitch Centre Diameter (PCD)...

Pingu

maurice the martian
Joined: Tue 26 Jan, 2010 19:44
Posts: 1026

  Z4 roadster 3.0i
Location: mars

Re: Making a Disc Skimmer

Post by maurice the martian » Tue 04 Nov, 2014 09:23

Inspector gadget srikes again, is there no end to your inventions,
Must say tho im a bit stumped as to the operating process,or am I being thick ,
M

Sent from my GT-N8010 using Tapatalk

User avatar
aceman
Joined: Sun 01 Jun, 2008 12:16
Posts: 1478

  M roadster S50
Location: Wakefield

Re: Making a Disc Skimmer

Post by aceman » Tue 04 Nov, 2014 13:16

I have had this in mind for the last couple of years but never got around to it, great minds think alike eh! :wink:
Aceman

Arctic Silver '98 Z3M

Previously;
Bright RED '99 Z3 2.8

Rocking seats ? You need seat bushes click HERE

maurice the martian
Joined: Tue 26 Jan, 2010 19:44
Posts: 1026

  Z4 roadster 3.0i
Location: mars

Re: Making a Disc Skimmer

Post by maurice the martian » Tue 04 Nov, 2014 13:51

Or u could do it on a small lathe.
Just sent a shiver down me spine.spent nigh on 20yrs bent over a lathe.
M

User avatar
pingu
Joined: Fri 30 Apr, 2004 17:01
Posts: 3337

  M roadster S50

Re: Making a Disc Skimmer

Post by pingu » Tue 04 Nov, 2014 17:44

maurice the martian wrote:Or u could do it on a small lathe.
Just sent a shiver down me spine.spent nigh on 20yrs bent over a lathe.
M
Small lathe is too small. 180mm od is about the biggest job before it fouls the bed.
Pingu
